Unmix Levels
Other Features and Improvements | New Features in SpectraLayers 10
Unmix Levels | New Features in SpectraLayers 9
Workflow and Speed Improvements | New Features in SpectraLayers 9
Cursor Crosshair and Coordinates | New Features in SpectraLayers 9

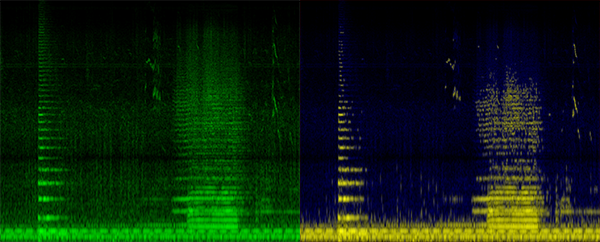

Unmix the selected layer into High Level and Low Level layers, using an user-defined threshold.
-
Threshold Type: When set to Absolute Power spectral values are unmixed based on an absolute threshold. When set to Local Average Power spectral values are unmixed based on a threshold compared to a local average. When set to Local Peak Power spectral values are unmixed based on a threshold compared to local peaks.
-
Analyze Selection: Automatically set the Threshold Value to the maximum value of the selected spectral region. The selected spectral region should then be representative of the low level layer you expect.
-
Threshold Value: Threshold in dB.
-
Horizontal Average: (Only when type is set to Average Power) Size of the horizontal area (in pixels) to estimate the local average.
-
Vertical Average: (Only when type is set to Average Power) Size of the vertical area (in pixels) to estimate the local average.
-
Horizontal Peak: (Only when type is set to Peak Power) Size of the horizontal area (in pixels) to estimate the local peak.
-
Vertical Peak: (Only when type is set to Peak Power) Size of the vertical area (in pixels) to estimate the local peak.
