Automatically unmix the selected layer into components (tonal, transients, noise).

  • Mode: When set to Non-Destructive, the sum of all layers will be equal to the original. When set to Reconstruct Hidden Noise, noise hidden under tonals or transients will be reconstructed.

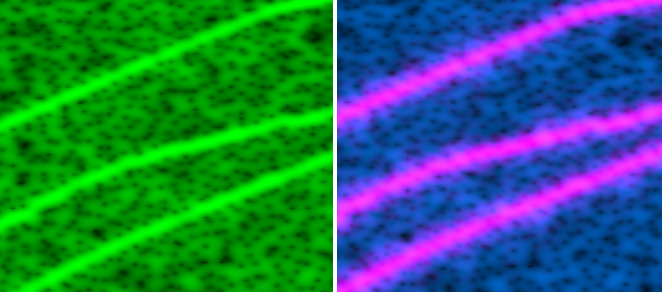

Here’s a source spectrogram (left) and after the components have been unmixed (right) into noise (blue) and tonals (pink): unmix

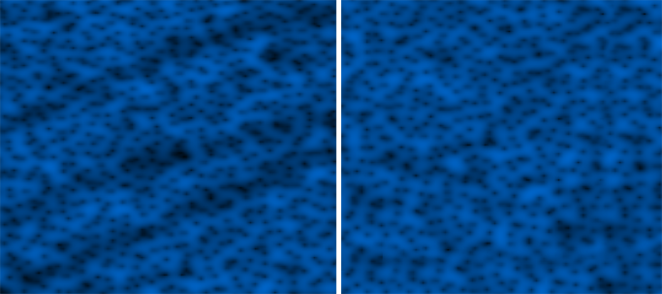

If Non-Destructive is set, tonals will leave some holes in the noise layer (left). If Reconstruct Hidden Noise is set, the missing noise will be reconstructed (right): unmixed

[Tip] Tip

Adjusting the FFT Size parameter from the Display Panel helps achieving the best components separation.
