Unmixing Layers

LayerUnmix Stems…​

video Unmix | Spectralayers Pro 7 Tutorials

Automatically unmix the active layer into instrument stems, using artificial intelligence.

By default the layer will be unmixed into Vocals, Piano, Drums, Bass and Other layers. When you uncheck one of those, potential matches will be transferred to Other.

Each instrument has a Sensitivity parameter to adjust how the artificial intelligence perform the separation.

The end result is a Non-destructive unmix if that option is checked. If it is unchecked, the sensitivity parameter affect each instrument without rebalancing the others to compensate.

LayerUnmix Components…​

video Unmix Components | Spectralayers Pro 7 Tutorials

Automatically unmix the active layer into components (tonal, transients, noise), using artificial intelligence.

When Unmix Transients is unchecked, potential matches will be transferred to Noise.

When Reconstruct Hidden Noise is checked, noise hidden under tonals or transients will be reconstructed.

The end result is non-destructive if Reconstruct Hidden Noise remains unchecked.

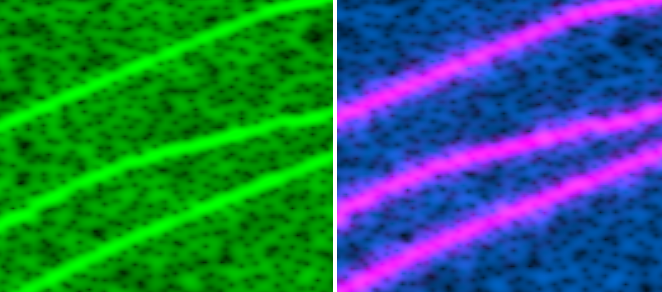

Here’s a source spectrogram (left) and after the components have been unmixed (right) into noise (blue) and tonals (pink): unmix

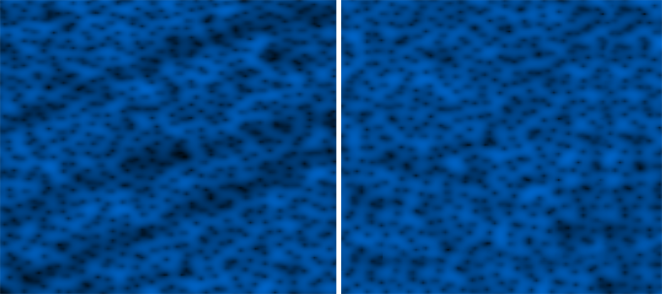

If Reconstruct Hidden Noise is unchecked, tonals will leave some holes in the noise layer (left). If checked, the missing noise will be reconstructed (right): unmixed

[Tip] Tip

Adjusting the FFT Size parameter from the Display Panel helps achieving the best components separation.
